CRANE SCALES



We are Leading CRANE SCALES manufacturers, exporters, suppliers located at Turbhe,
Navi Mumbai, Maharashtra, India

CRANE SCALES

Contech manufactures Crane Scales for weighing upto 50 ton. Options available are remote key panel, heat shielding for high temperature application in foundries, Metallurgy and wireless remote Indicator.


  STANDARD CRANE SCALES

Rugged aluminum diecast enclosure for Models upto 20 ton   Multiple print options with Sr. No, Date, Time & Weight in horizontal / vertical mode.
Steel heavy duty enclosure for Models above 20 ton. Date & Time entry facility.
25 mm height LED display for Models upto 20 ton & 38mm height above 20 ton.   Multiple weighing units.
Maximum safety overload 200%.   Storage of weights in memory upto 100 samples
Inbuilt sealed maintenance free re-chargeable battery and battery charger (Optional)   Power saving by switching off the display.
Infrared remote keypad, operating distance 10 mtr (Optional)   Automatic zero tracking.
RS-232 Interface (Optional)   Software linearity correction.
Display hold facility. Gross & Net Weight function.

Highslide JS



Click On Image For ZOOM



   MODELS CAPACITY ACC NET Weight
(Kg)
CCS-500K100 500Kg 100g 4.2
CCS-1T200 1Ton 200g  4.2
Highslide JS


Click On Image For ZOOM

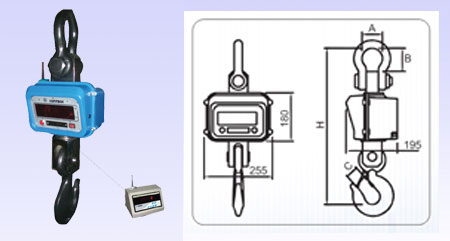

MODELS CAPACITY ACC DIMENSION NET Weight
(Kg)
H A B C
CCS-2T500 2 Ton  500g 465 56 65 25 12
CCS--3T1K 3 Ton 1Kg 495 56 65 32 13
CCS-5T2K 5Ton 2Kg 595 72 90 36 18
CCS-10T/5K 10Ton 5Kg 660 90 110 50 29
Highslide JS


Click On Image For ZOOM

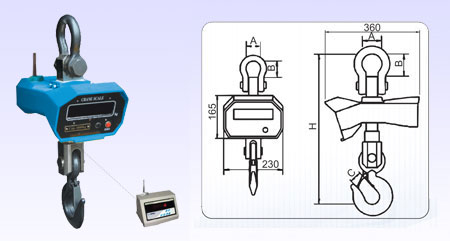

   MODELS CAPACITY ACC DIMENSION NET Weight
(Kg)
H A B C
CCS-15T5K 15 Ton  5kg 920 140 230 60 67
CCS--20T5K 20 Ton 5Kg 980 140 230 70 75
Highslide JS


Click On Image For ZOOM

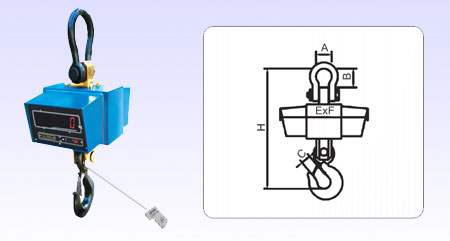

MODELS CAPACITY ACC DIMENSION E x F NET Weight
(Kg)
H A B C
CCS-30T10K 30 ton 10Kg 1110 160 260 60 500x310 156
CCS-40T20K 40 ton 20Kg 1200 180 220 110 440x410 235
CCS-50T20K 50 ton 20Kg 1310 200 270 110 440X410 280

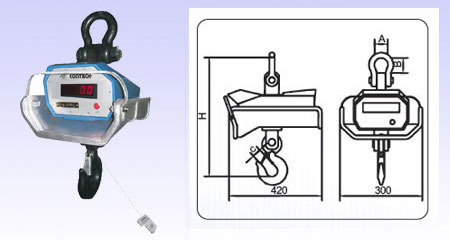

  CRANE SCALES WITH HEAT INSULATING SHIELD

Rugged aluminum diecast enclosure for Models upto 20 ton   Multiple print options with Sr. No, Date, Time & Weight in horizontal / vertical mode.
Steel heavy duty enclosure for Models above 20 ton. Date & Time entry facility.
25 mm height LED display for Models upto 20 ton & 38mm height above 20 ton.   Multiple weighing units.
Maximum safety overload 200%.   Storage of weights in memory upto 100 samples
Inbuilt sealed maintenance free re-chargeable battery and battery charger (Optional)   Power saving by switching off the display.
Infrared remote keypad, operating distance 10 mtr (Optional)   Automatic zero tracking.
RS-232 Interface (Optional)   Software linearity correction.
Display hold facility. Gross & Net Weight function.
Special construction for high temperature shielding. Minimum distance for normal operation is 2 mtr
from a heat radiation source at 1500o C.
Heavy duty aluminum diecast enclosure.
Highslide JS



Click On Image For ZOOM



   MODELS CAPACITY ACC DIMENSION NET Weight
(Kg)
H A B C
CCH-1T200 1 ton  200g 465 56 65 25 26
CCH-2T500 2 Ton 500g 490 56 65 32 60
CCH--3T1K 3 Ton 1Kg 570 72 90 36 36
CCH-5T2K 5 Ton 2Kg 640 90 110 50 42
CCH-10T5K 10 Ton 5Kg 920 140 230 60 77
CCH-15T5K 15 ton 5Kg 980 140 230 70 85

  CRANE SCALES WITH WIRELESS TRANSMISSION

Rugged aluminum diecast enclosure for Models upto 20 ton   Multiple print options with Sr. No, Date, Time & Weight in horizontal / vertical mode.
Steel heavy duty enclosure for Models above 20 ton. Date & Time entry facility.
25 mm height LED display for Models upto 20 ton & 38mm height above 20 ton.   Multiple weighing units.
Maximum safety overload 200%.   Storage of weights in memory upto 100 samples
Inbuilt sealed maintenance free re-chargeable battery and battery charger (Optional)   Power saving by switching off the display.
Infrared remote keypad, operating distance 10 mtr (Optional)   Automatic zero tracking.
RS-232 Interface (Optional)   Software linearity correction.
Display hold facility. Gross & Net Weight function.
Heavy duty steel enclosure. Wireless transmission maximum operating distance from the Indicator is 100 mtr.
Graphical backlite LCD display in the Indicator.     Real Time Clock (Optional).

Highslide JS



Click On Image For ZOOM

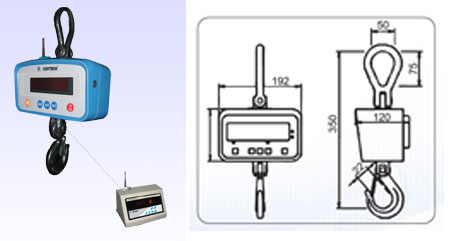

   MODELS CAPACITY ACC DIMENSION NET Weight
(Kg)
H A B C D
CCW-5TK2K 5 ton  2kg 595 72 90 36 270 33
CCW-10T5K 10 Ton 5kg 690 90 110 50 270 42
CCW-20T5K 20 Ton 5Kg 930 140 230 70 320 87
CCW-30T10K 30 Ton 10Kg 1110 160 260 90 350 155
CCW-40T20K 40 Ton 20Kg 1200 180 220 110 420 220
CCW-50T20K 50 Ton 20Kg 1310 200 270 110 420 265

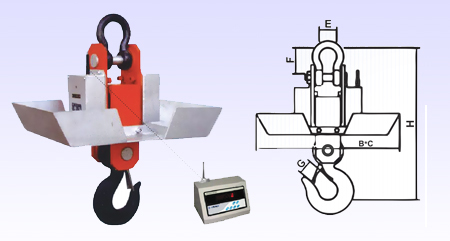

  CRANE SCALES WITH WIRELESS TRANSMISSION & HEAT INSULATING SHIELD

Rugged aluminum diecast enclosure for Models upto 20 ton   Multiple print options with Sr. No, Date, Time & Weight in horizontal / vertical mode.
Steel heavy duty enclosure for Models above 20 ton. Date & Time entry facility.
25 mm height LED display for Models upto 20 ton & 38mm height above 20 ton.   Multiple weighing units.
Maximum safety overload 200%.   Storage of weights in memory upto 100 samples
Inbuilt sealed maintenance free re-chargeable battery and battery charger (Optional)   Power saving by switching off the display.
Infrared remote keypad, operating distance 10 mtr (Optional)   Automatic zero tracking.
RS-232 Interface (Optional)   Software linearity correction.
Display hold facility. Gross & Net Weight function.
Special construction for high temperature shielding. Minimum distance for normal operation is 2 mtr from a heat radiation source at 1500oC.
Wireless transmission maximum operating distance from the Indicator is 100 mtr.     Graphical backlite LCD display in the Indicator.
Real Time Clock (Optional).

Highslide JS



Click On Image For ZOOM



   MODELS CAPACITY ACC DIMENSION NET Weight
(Kg)
H A B C D
CCWH-5T2K 5 ton  2kg 700 90 110 50 600 58
CCWH-20T5K 20 Ton 5kg 1110 160 260 90 700 180
CCW-20T5K 30 Ton 10Kg 1200 180 220 110 800 250

  OPTIONAL ACCESSORIES

Crane scale with Flameproof Indicator

Highslide JS



Click On Image For ZOOM



Crane scale with Flameproof Indicator is provided in a Cast Aluminium construction in compliance with requirements in respect of flameproof ness and temperature class suitable for use in Zone 1 & Zone 2 and gas groups IIA & IIB atmospheres. Certified by Central Institute of Mining & Fuel Research. Govt. of India.

Loadcell connection through Zenner Barrier.

  Remote Keypanel

Infrared remote key panel.
Operating distance 10 mtr.

  Auxiliary Large Panel Display

Large size digit in high bright red LED for long distant viewing.
Wired and wireless options available.
